Light Statuses for UG-101 and UG-204 Gateways.
Light Statuses
- Gateway unable to get a DHCP address:
- UG-10x: "A" light is off
- UG-204: "Aux Internet" light is blinking
- Gateway unable to complete DNS queries:
- UG-10x: Status light is orange
- UG-204: "Local 2" light is blinking
- Gateway unable to access the cloud:
- UG-10x: Status light is orange
- UG-204: "Local 1" light is blinking
- Gateway is reporting to the cloud OK
- UG-10x: Status light is green
- UG-204: "Main Internet" light is steady green and no other green lights are blinking at all
Additional 10x Status light definitions
- Blue: Downloading configuration from the cloud.
- Purple: Firmware update in progress

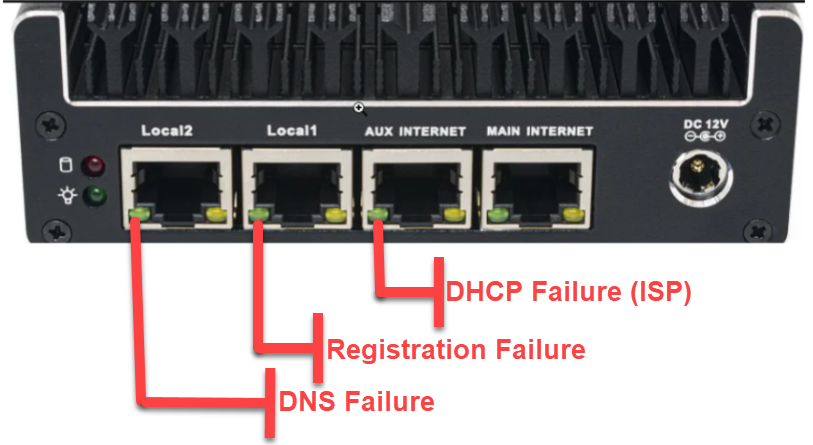

Image of the 204 Gateway:
